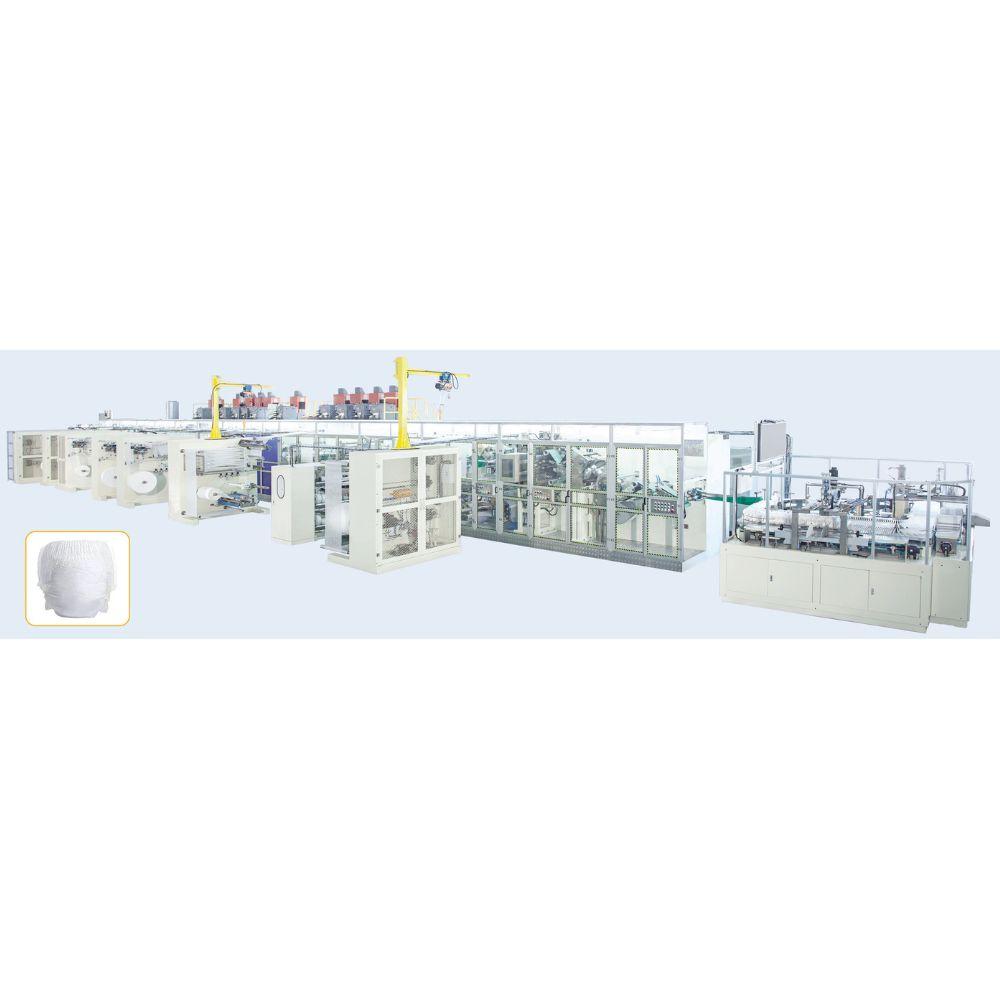

Full Automatic High Speed Servo Pull Up Baby Diaper Machine Production Line

MAIN PARAMETERS:

Overall size: 38mx10mx4m (for reference only)

Machine size(m): 28mx2mx3.5m(based on the product provided by client)

Design speed: 1000 pcs per minute

Stable work speed: 800 pcs per minute

Rejection rate: ≤3%
(excluding scrap caused by hot melt ,materials splicing or joint)
Efficiency :≥85%
Machine capacity: 380KW approximately

Air pressure:0.6-0.8Mpa

Machine weight:85 Tons approximately

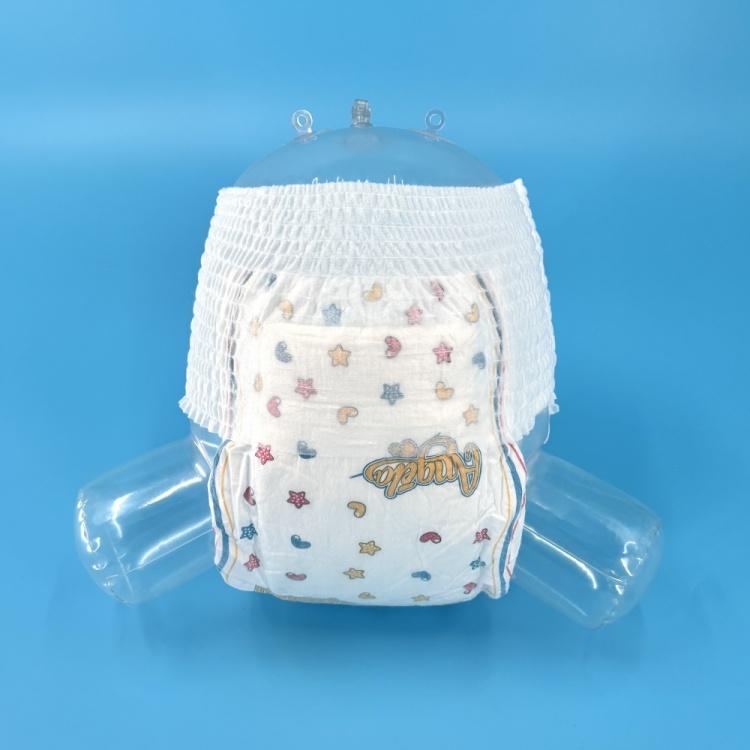

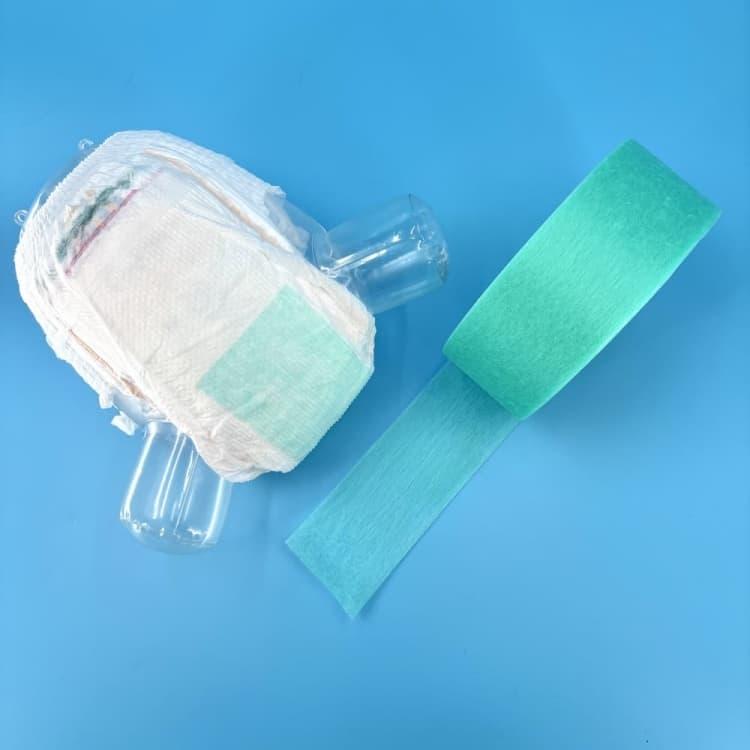

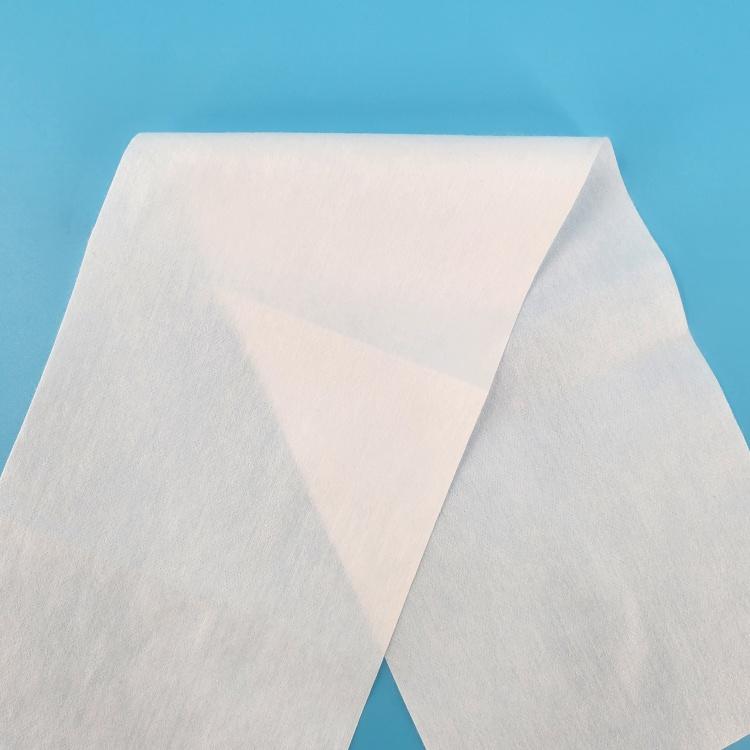

Product structure: Upper & lower tissue (or airlaid ),Coton core (mix with SAP), Topsheet hydrophiic nonwoven, ADL nonwoven, Leak culthvdrophobic nonwoven,3D core coating, Back sheet, Waist nonwoven, Printed cartoon tissue, Waist elastic, $ elastic, Easy tape

Product size: 4 sizes (M, L, XL, XXL), to be customized.

Program system: Servo driven, intelligent HMl touch screen man-machine interface.

Tension system: Tension control with bufer system, automatic web guiding system, to ensure materials stable working at ZERO speed solice

Driven system: Servo drive, digital size change, ensure run synchronously at full process

Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.

Packaging system: Auto stacker to be defined by customer need (dual push dual exit),the stacking range: 16-36pcs/pack adjustable.

Web guiding system: Germany BST/USA FIFE.
Customized function available
