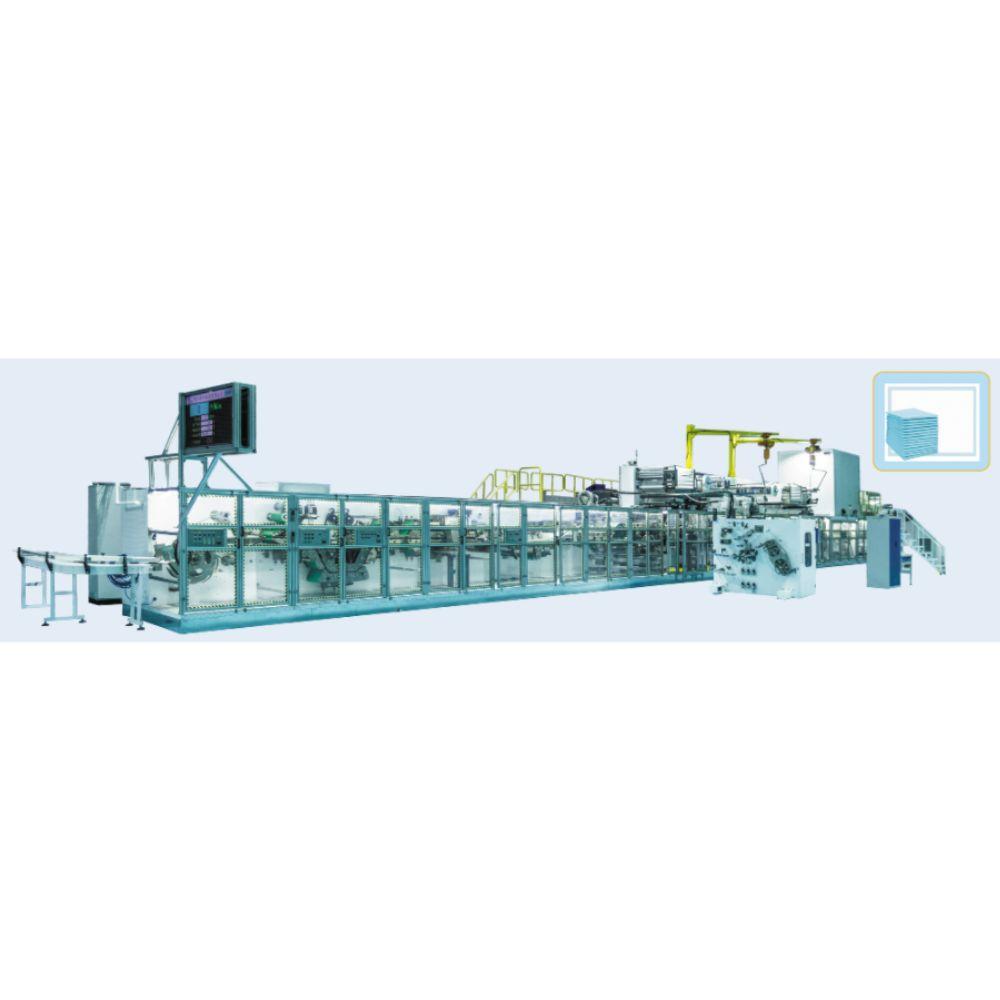

Full Servo Automatic Incontinent Nursing Pad Making Machine

MAIN PARAMETERS:

Overall size: 37mx9mx5m (for reference only)

(based on the product provided by client)

Design speed: 450meter /per minute

Stable work speed: 300meter / per minute

Rejection rate: s3 %

Machine capacity:290kW approximately

Air pressure: 0.6-0.8Mpa

Machine weight: 50 Tons approximately

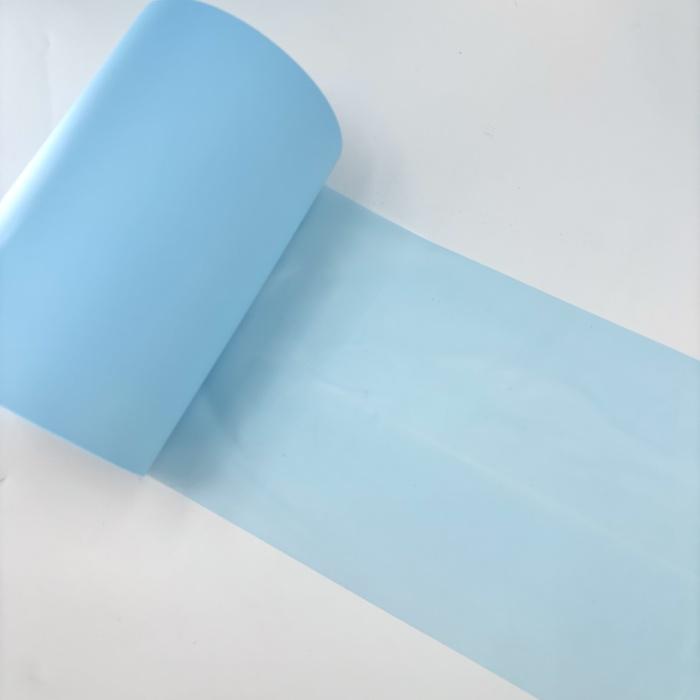

Product Structure: Upper & Lower tissue, Cotton core(mix with SAP), Topsheet hydrophilic nonwoven, PE fim, Release paper

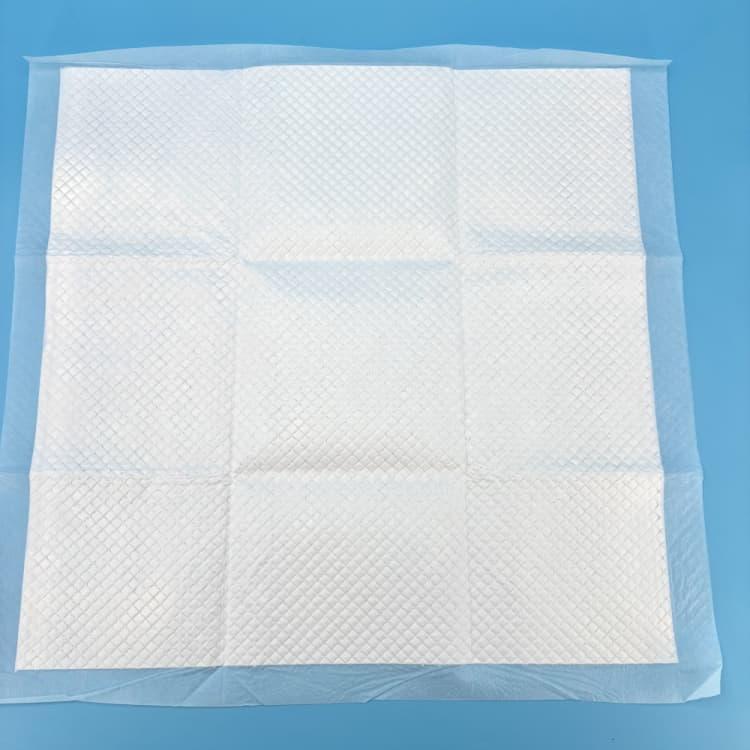

Product size:450mmx700mm,600mmx600mm,600mmx900mm, to be customized.

Program system: Servo driven, intelligent HMl touch screen man-machine interface

Tension system: Tension control with bufer system, automatic web guiding sytem, to ensure materials stable working at ZERO speed splice

Driven system: Servo drive, digital size change, ensure run synchronously at full process.

Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side

Auto Packing system: Auto stacker and packaging machine to be defined by customer need.

Web guiding system: Germany BST/USA FIFE.
Customized function available
