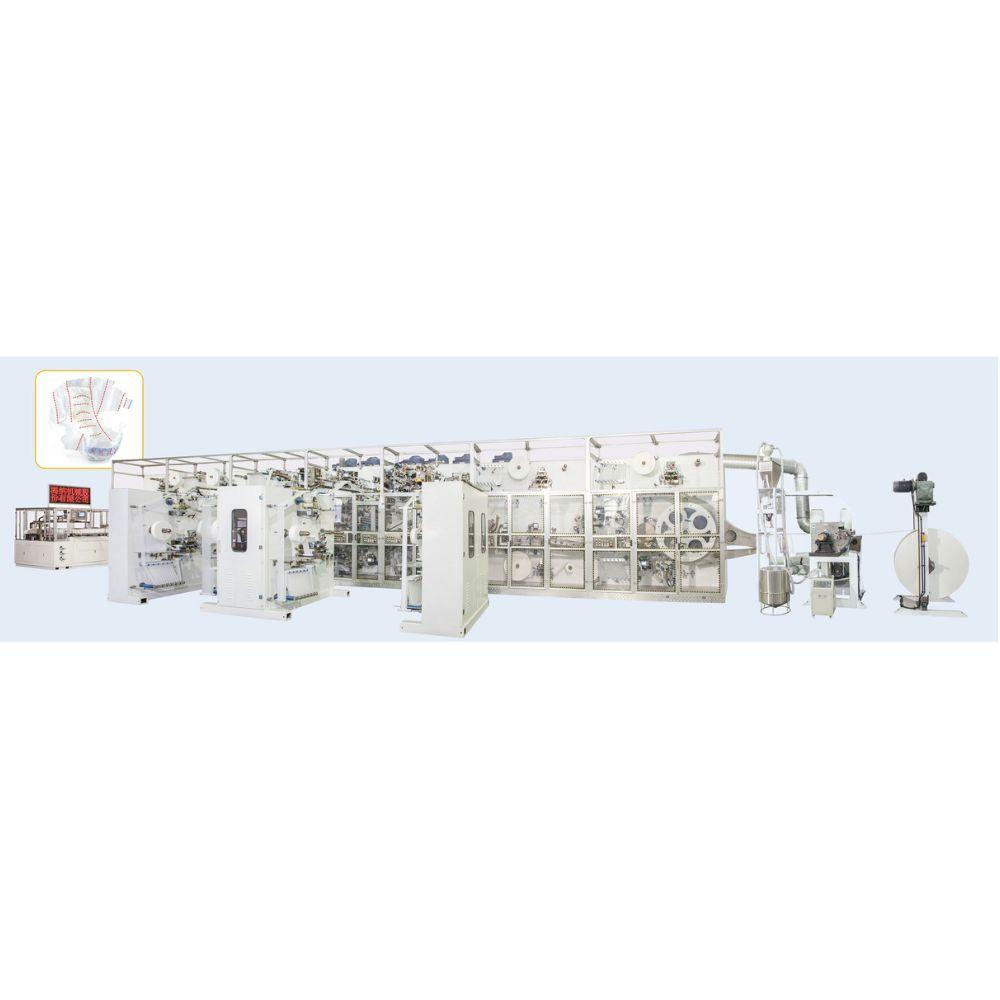

High Speed Full Automatic Servo Control T-shape Baby Diaper Making Machine Production Line

MAIN PARAMETERS:

Overall size: 30mx6mx3.8m(for reference only)
Machine size(m): 28mx4.2mx3.5m
(based on the client customized design)
Design speed: 600pcs per minute
Stable work speed: 550pcs per minute(Medium size)
Rejection rate: s3.0%
(excluding scrap caused by hot melt, materials splicing or joint)
Efficiency: ≥85%
Machine capacity:225KW(approximately)Air pressure: 0.6-0.8MpaMachine weight: 55 Tons approximately

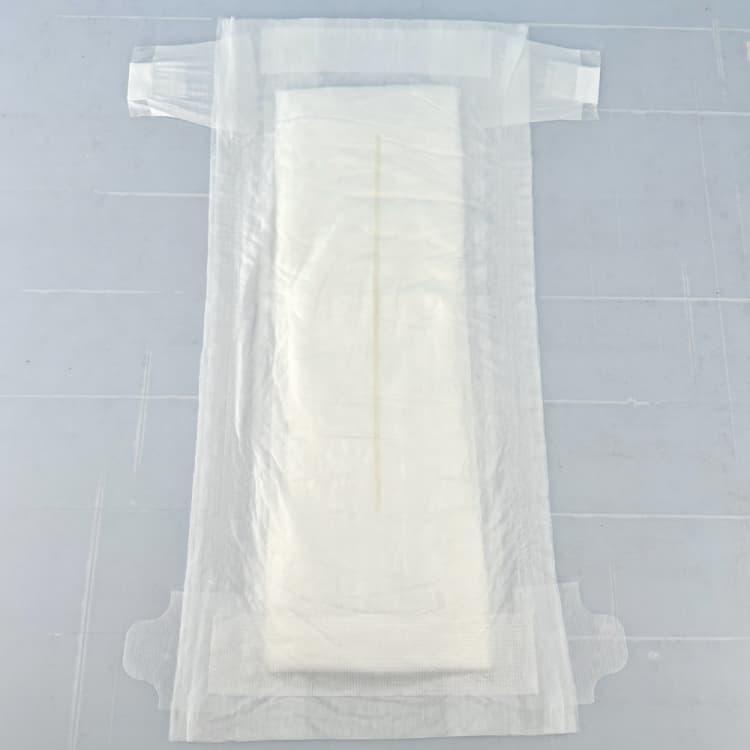

Product sructure: Upper & lower tissue, Colton core(mix with SAP), ADL, Backsheet, Frontal tape, Topsheet hydrophiic nonwoven, Leg cuffhydrophobic nonwoven, Spunbond small ear, Elastic big ear, Waistband.

Product size: NB/S/M/L/XL.
Product specification: Width: 260mm~350mm Length: 380mm~580mm.

Program system: Servo driven, intelligent HMl touch screen man-machine interface.

Tension system: Tension control with bufer system, automatic web quiding system, to ensure materials sable working at ZERO speed splice

Driven system: Servo drive, digital size change, ensure run synchronously at full process.

Safety system: Safety guard for operaing side, emergency stop switch, security identifer, safety pull wire at driven side.

Packaging system: Auto stacker to be defined by customer need(dual push dual exit), the stacking range: 16-40pcs/pack adjustable.

Web guiding system: Germany BST/USA FIFE.

Customized function available
