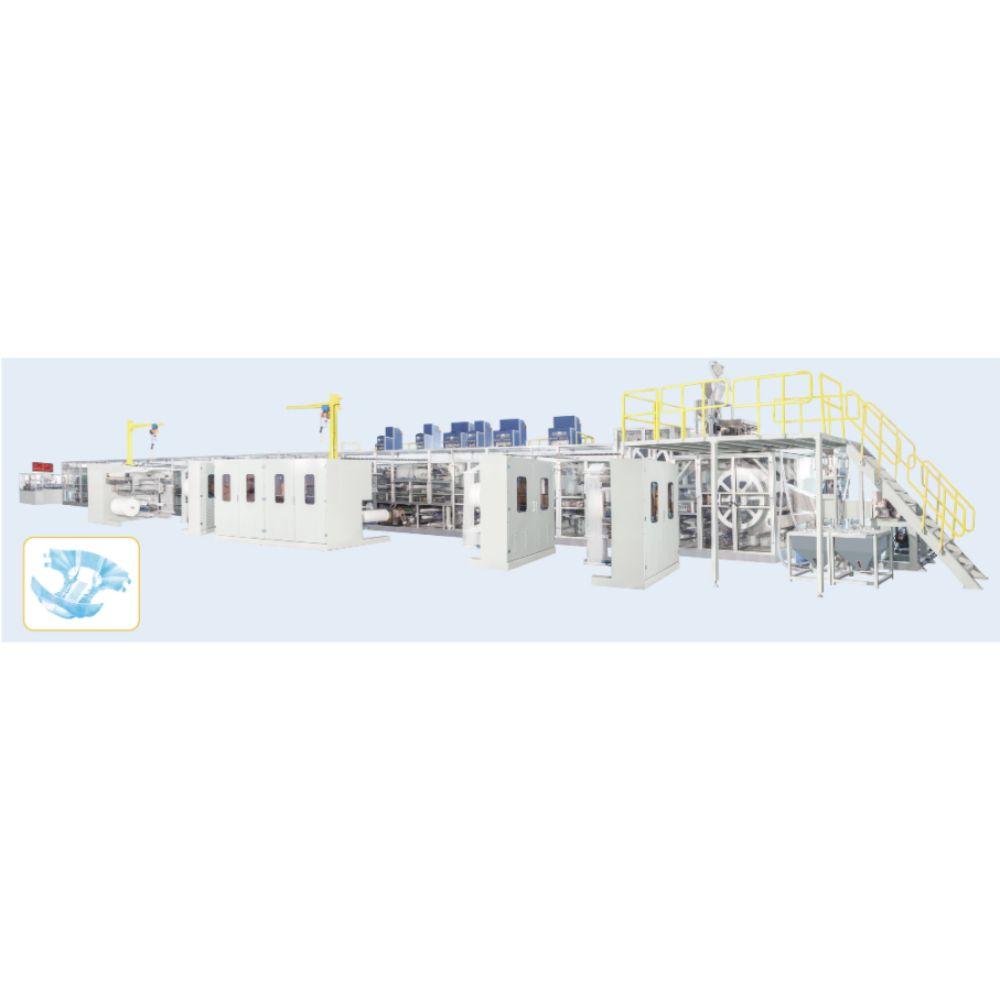

Stable Premium Quality Adult Diaper Making Machine High Speed Full Automatic Incontinent Diaper Production Line

MAIN PARAMETERS:

Overall size: 30m x 10m x 3.5m (for reference only)
Design speed: 450pcs per minute
Stable work speed:400pcs per minute
Rejection rate: s4%
(excluding scrap caused by hot melt ,materials splicing or joint)
Efficiency: 285%
Machine capacity: 450KW approximately
Air pressure:0.6-0.8Mpa

Machine weight: 90 Tons approximately

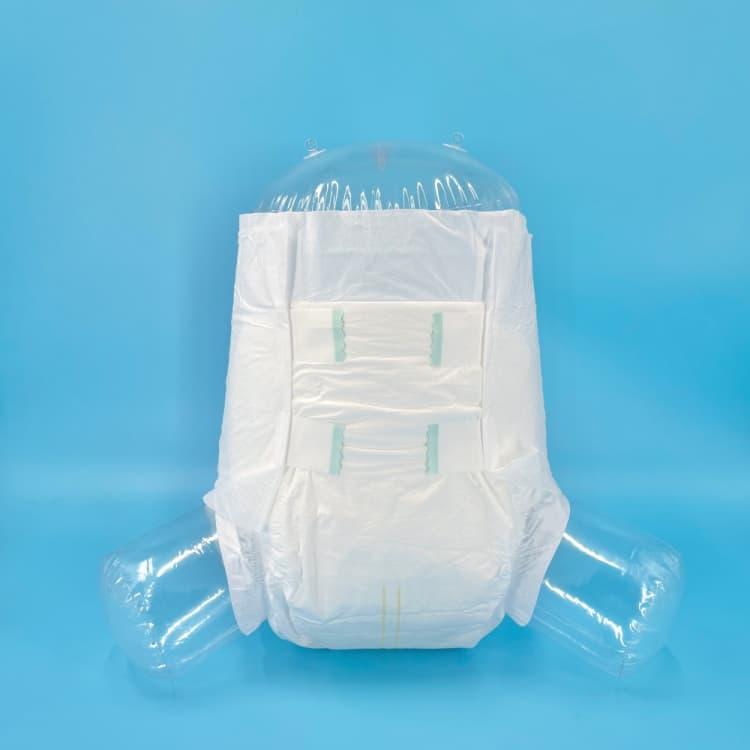

Product sructure:Leg cuf hydrophobic nonwoven, Top sheet hydrophilic nonwoven, ADL, Coton core (SAP mixed), Side tape, Waistband
Frontal tape, Back sheet.
Product size: (mm)M:680x450 L:800x650 XL: 950 x 760 (to be customized)

Program system: Servo driven, intelligent HMl touch screen man-machine interface.

Tension system: Tension conrol with bufer system, automatic web guiding system, to ensure materials stable working at ZERO speed splice

Driven system: Servo drive, digital size change, ensure run synchronously at full process.

Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pul wire at driven side.

Packaging system: Auto stacker to be defined by customer need (dual push dual exit), the stacking range: 8-16pcs/pack adjustable

Web guiding system: Germany BST/USA FIFE.
Customized function available
