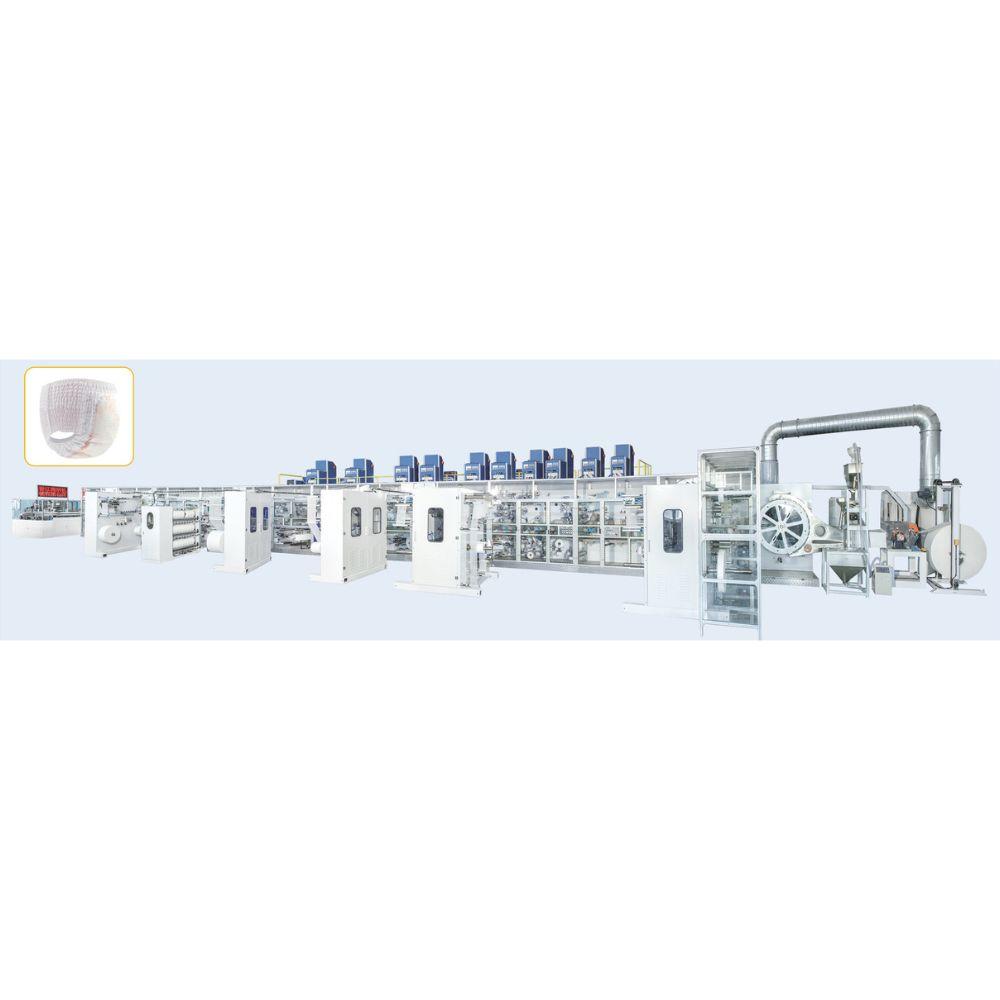

Fully Automatic Servo High-speed Three-piece Baby Pull-up Pants Production Machine Line

MAIN PARAMETERS:

Overall size:45mx10mx4m (for reference only)

Machine size(m): 34mx2.2mx3.8m(based on the product provided by client)

Design speed: 1000 pcs per minuteStable work speed: 900pcs per minute

Rejection rate: ≤3%

(excluding scrap caused by hot melt ,materials splicing or joint)

Efciency: >=85%

Machine capacity: 350-550KW approximately

Air pressure: 0.6-0.8Mpa

Machine weight: 90 Tons approximately

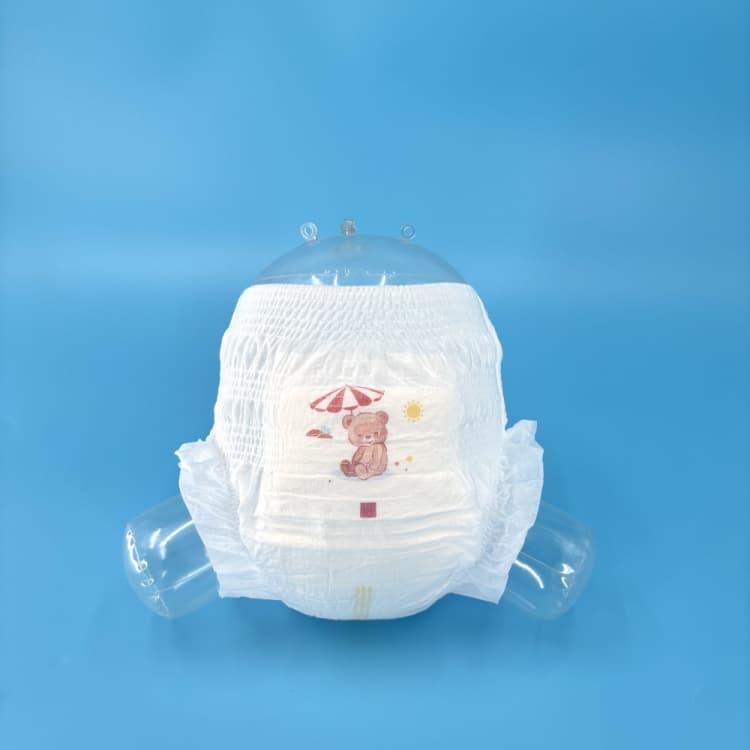

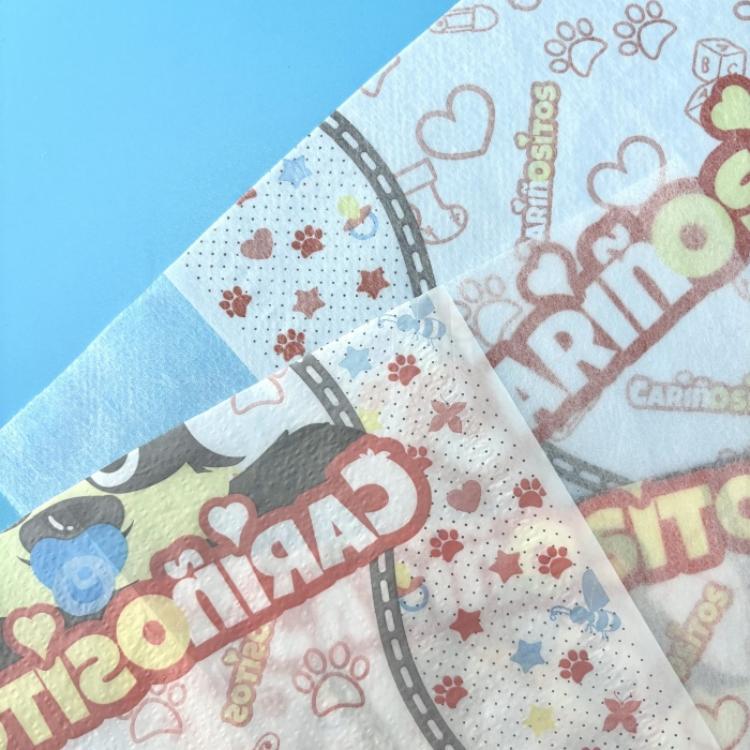

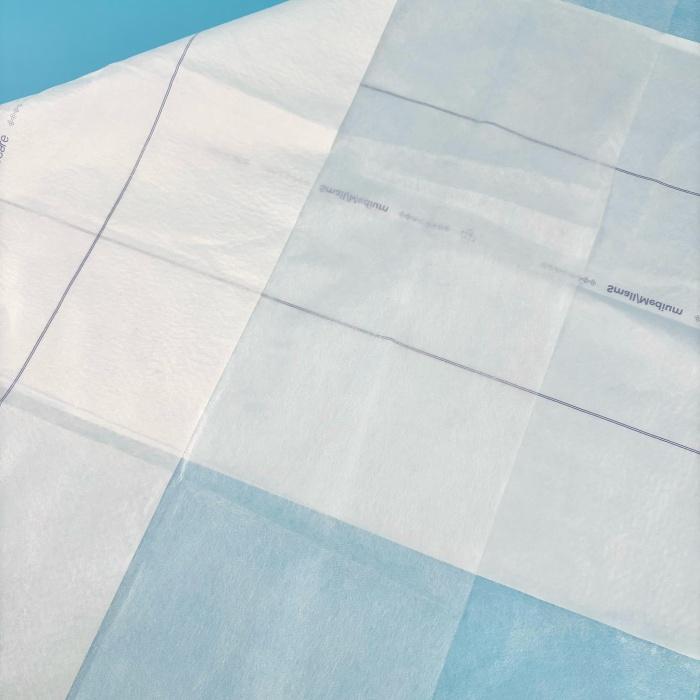

Product structure: Upper & lower tissue (or airlaid ), Cotton core (mix with SAP), Topsheet hydrophilic nonwoven, ADl nonwoven, Leak cufihydrophobic nonwoven, Back sheet, Waist nonwoven, Printed cartoon tissue, Waist elastic, Easy tape.

Product size: 4 sizes (M, L, XL, XXL), to be customized.

Program system: Servo driven, intelligent HMl touch screen man-machine interface.

Tension system: Tension control with bufer system, automatic web guiding system, to ensure materials stable working at ZERO speed splice

Driven system: Servo drive, digital size change, ensure run synchronously at full process.

Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.

Packagina system: Auto stacker to be defined by customer need (dual push dual exit, the stacking range: 16-36pcs/pack adlustable

Web guiding system: Germany BST/USA FIFE.
Customized function available
