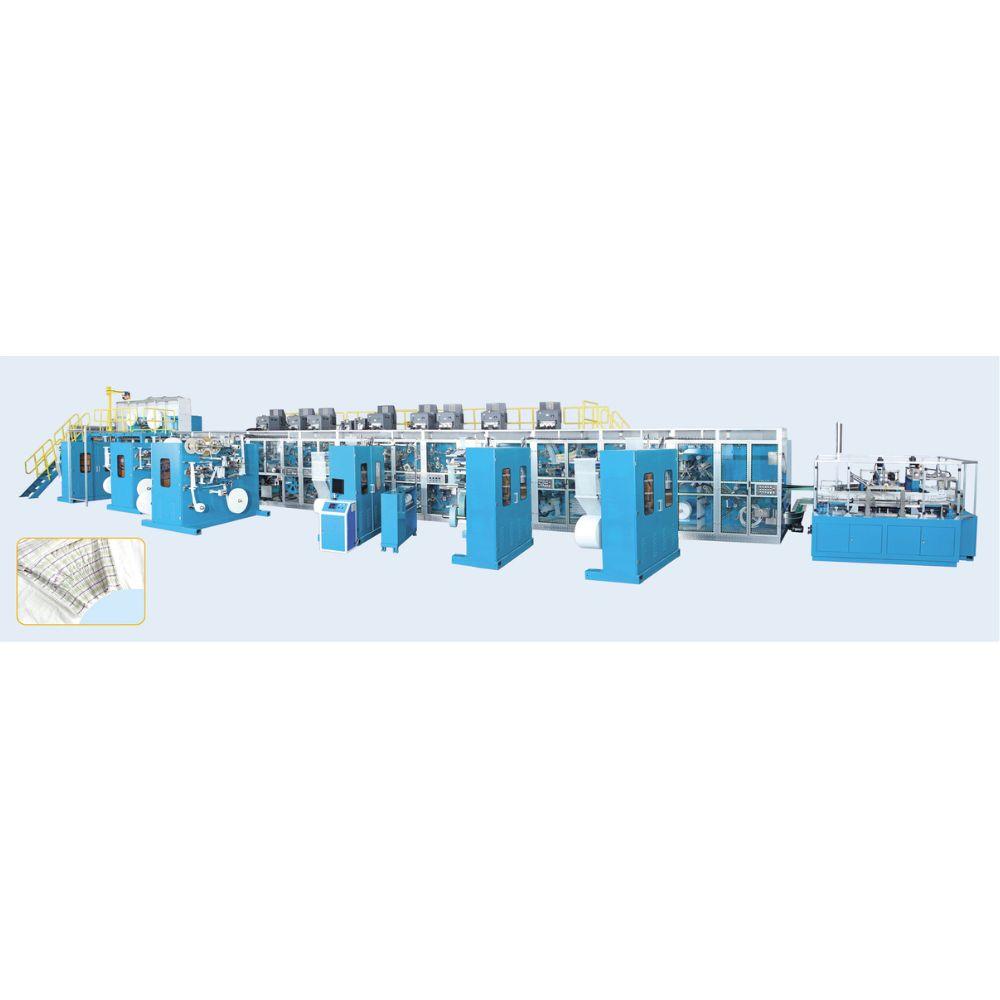

High Speed Full Automatic Servo Control Waistband Baby Diaper Making Machine Production Line

MAIN PARAMETERS:

Overall size: 38mx8mx5m(for reference only)

Machine size(m):28mx2.2mx3.8m(based on the product provided by client)

Design speed: 800pcs per minute

Stable work speed: 700pcs per minute

Rejection rate: s3%

(excluding scrap caused by hot melt ,materials splicing or joint)

Efficiency: 285%

Machine capacity: 300-500KW approximately

Air pressure: 0.6-0.8Mpa

Machine weight: 85 Tons approximately

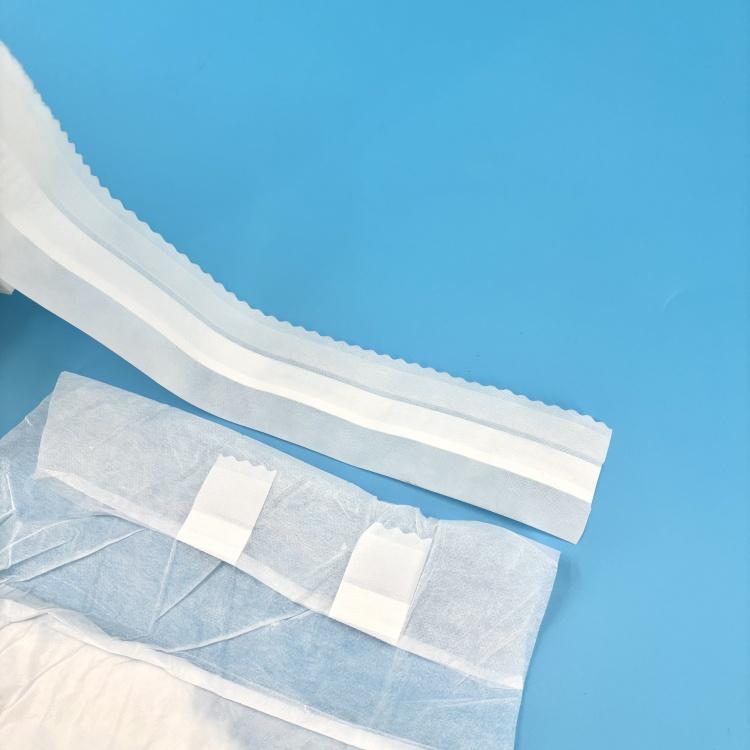

Product structure: Upper & lower tissue (or airlaid ), Coton core (mix with SAP), ADL, PE film, Frontal tape, Topsheet hydrophiic nonwoven,Leg cuff hydrophobic nonwoven, "S" cut side tape, Waistband online.

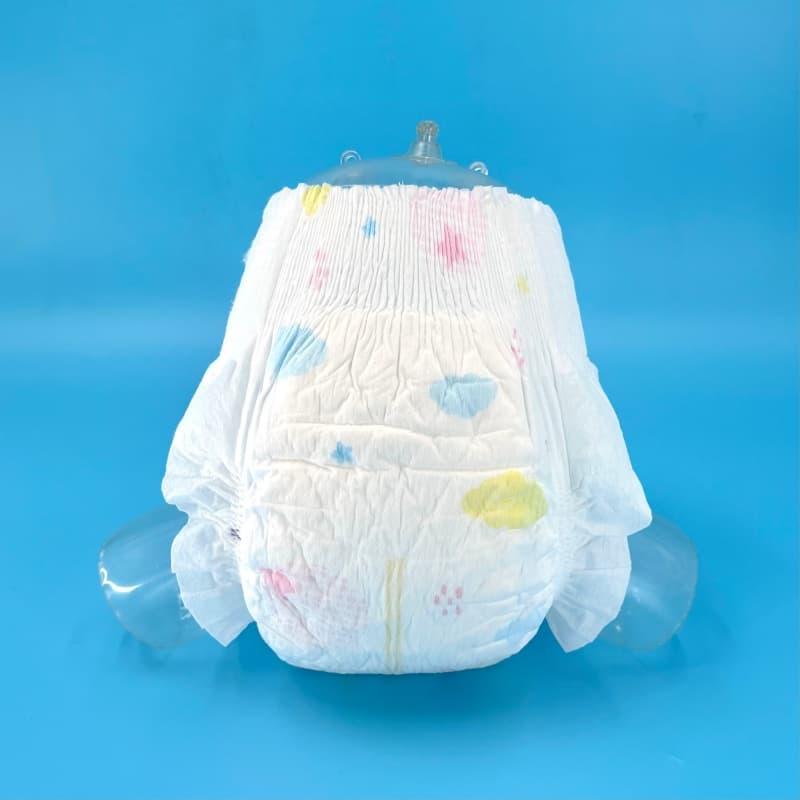

Product size:(mm)S:390x320M:450x320L:500x330XL:525x330

Program system: Servo driven, intelligent HMl touch screen man-machine interface.

Tension system: Tension control with bufer system, automatic web guiding system, to ensure materials stable working at ZERO speed splice.

Driven system: Servo drive, digital size change, ensure run synchronously at full process.

Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.

Packaging system: Auto stacker to be defined by customer need (dual push dual exit), the stacking range: 16-40pcs/pack adjustable.

Web guiding system: Germany BST/USA FIFE.
Customized function available
